Reinforced mesh
- Description
-
Concrete Reinforcing Mesh is also named welded steel fabric, which is made of made of high-quality rebar that has been straightened and cut and then welded by electric welding equipment.Concrete mesh has a more dense mesh spacing pattern. With the features of high strength, not easy to break and prevent the emergence of concrete cracks, it is usually used for reinforcement of concrete structure, and widely applied to coal mine tunnel, concrete pavement, bridge deck, airport runway, housing floor, roof, wall and so on.

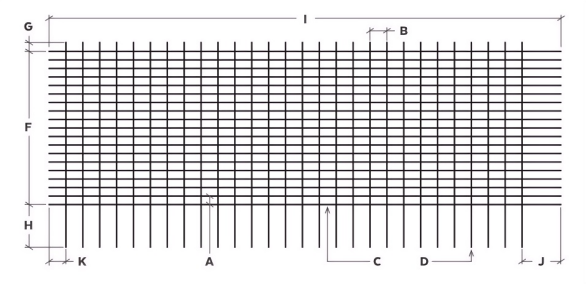

A：Longitudinal Spacing
B：Cross Spacing
C：Longitudinal Wire Diameter
D：Cross Wire Diameter
F：Width Excluding Overhangs
G：Left Side Overhang
H：Right Side Overhang
I：Length Including Overhangs
J：Front End Overhang
K：Back End Overhang
Concrete Reinforcing Mesh Rebar Diameter 5-12 mm Rebar Distance 50, 100, 150, 200, 250, 300, 400mm Mesh Size 50×50, 100×100, 150×150, 200×200mm Panel Width 0.5-2.4m Panel Length 1-12m
